SYF8813

SYF-8813

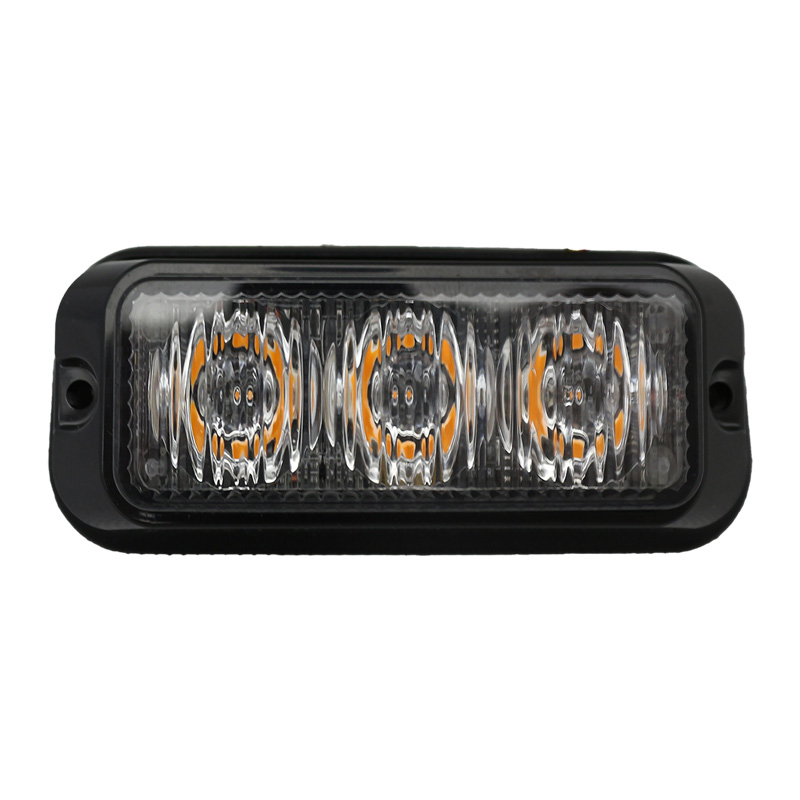

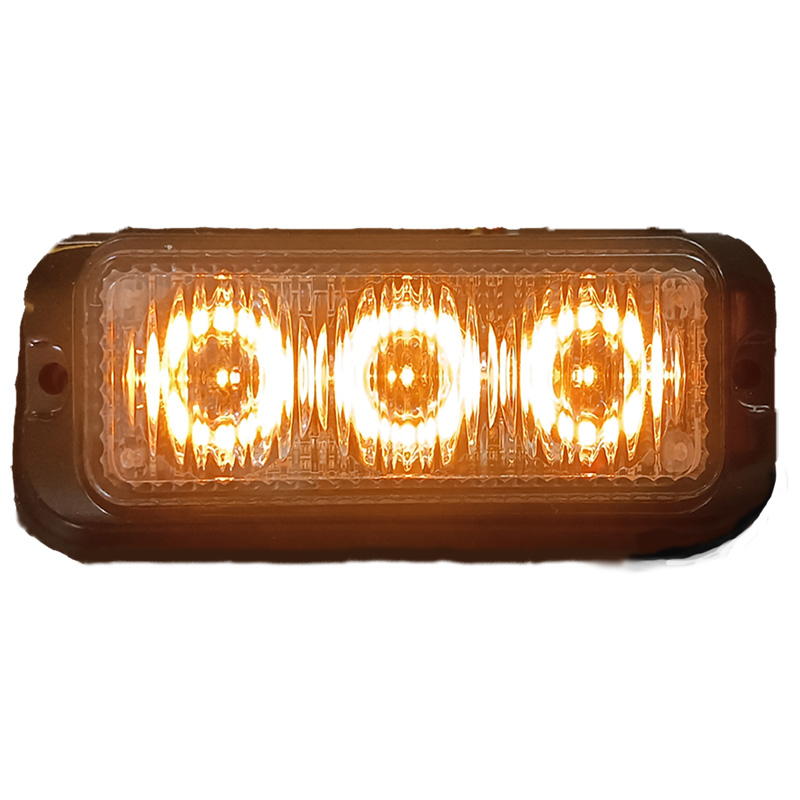

Directional LEDS (Surface Mount)

E6 R10-03 0265

  • LEDs Color: Amber / Blue / Clear / Green/ Red

  • High-intensity LEDs. 1W x 3 LEDs

  • Fully encapsulated waterproof ABS housing:lP68

  • Polycarbonate lens provides optimum light emission,has the highest impact break resistance rating. Durable polycarbonate lens for intense display.

  • Lightheads can be synchronized

  • Meets SAE CLASS 2
  • Flash Pattern: 12 flash patterns
  • LED: 1 W X 3
  • Voltage: DC 12V〜24 V
  • Peak Current: 0.5A (12V)
  • Average current: 0.25A (12V)

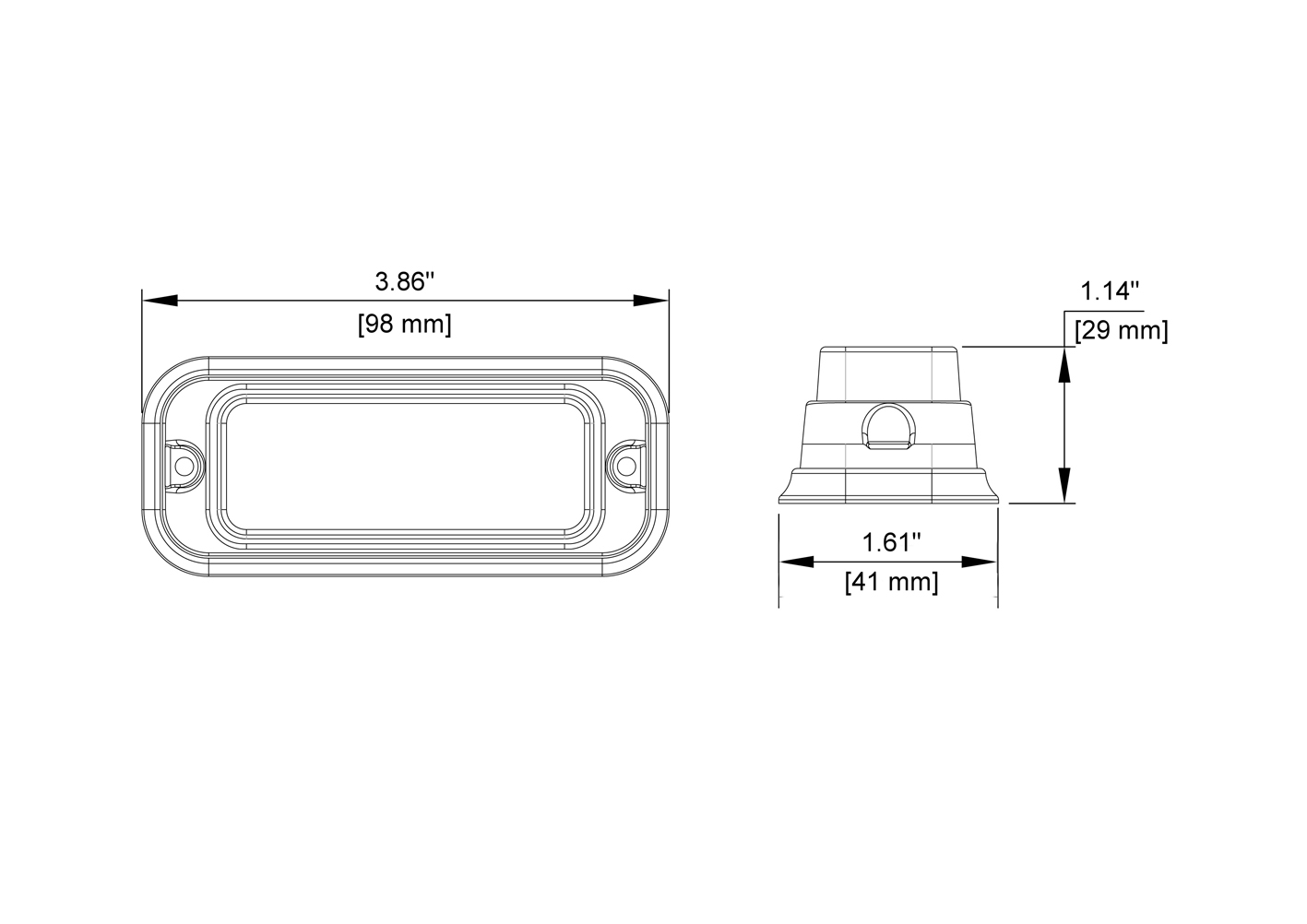

  • Size:3.86" (98 mm) Length x1.61" (41 mm) Width x1.14"(29 mm) Height
  • Meets SAE J595 EMI & RFI
  • Packing:100 pcs/ctn

Accessories

  • Silicone Gasket  1pc
  • 3x20 mm SST Mounting Screw  2pcs

Reference Item No.

Lens Color Model No. Lens Color Model No.
Amber 8813A Blue 8813B
Clear 8813C Red 8813R
Green 8813G
